How to Design for iPhone X

Designing for the iPhone X will bring some new challenges, but also some new design opportunities. In this article, I’ll share a few suggestions that will help you design apps and games that look and feel great on iPhone X.

Display Specifics

iPhone X has a new high-resolution, rounded, edge-to-edge Super Retina display has a resolution of 1125×2436px. While it gives designers more space for display content and allows them to create a genuinely immersive experience, there are a few things that should be considered when designing for this device:

1. 3x Image Scale Factor

iPhone X has 3x image scale factors (@1x,@2x, and @3x). When rasterized images are needed, be sure to include both 2x and 3x image resolutions in your app image resolution catalog. Also, it’s recommended to use SVGs for glyphs and other flat artwork that requires high-resolution scaling because they are resolution-independent.

2. New Display Dimensions: More Screen Space, More Content

iPhone’s X display dimensions are 375pt width * 812 pt tall. On a 3x display this equals 1,125 px @3x width * 2,436 px @3x tall. In portrait orientation, the width of the display on iPhone X matches the width of the 4.7″ displays of iPhone 6, iPhone 7, and iPhone 8 so there shouldn’t be any difference in the amount of information presented along with the narrow dimensions of these devices. But the display has a different height: the 812pt height is 145pt taller that 667pt of 4.7” displays. This additional height of iPhone X provides 20% more space for content.

3. Consider Aspect Ratio When Creating Background Images

When designing background images keep in mind that iPhone X also has different aspect ratio than a 4.7” display. Background graphics created for iPhone’s 8 16:9 aspect ratio needs to be adjusted to satisfy the technical requirements of iPhone X . To prevent the negative outcome, it’s better to compose images so that critical visual information remains visible regardless of display aspect ratio.

4. Don’t Position Elements In Display’s Edge Corners

Rounded corners bring another challenge for designers: every element that is positioned too close to the viewport’s edges may get clipped or covered by the sensor housing. It’s critical to inset controls and other elements to avoid this.

5. Use Safe Area Layout To Display Content

Safe Area layout helps avoid underlapping system UI elements when positioning content and controls. On iPhone 8 the Safe Area is the same size as the viewport when no bars are visible. On iPhone X the Safe Area layout is inset from the top and bottom of the screen edges even when no bars are visible on the screen. This helps you to prevent interface elements from getting clipped or covered.

However, there two exception for the Safe Area: the app’s background and vertically scrollable views. Vertically scrollable views, such as tables and collections, should extend all the way to the bottom of the display and extend to the edges rather than be constrained to the Safe Area zone.

6. Don’t Worry About Native Components

If your app uses native iOS component (such as navigation bars, tables, collection views, tab bars, etc.) and you worry about how they’ll be adapted for the iPhone X, don’t worry! They will be inset and positioned automatically.

Home Indicator

iPhone X changed one of the iPhone’s interactions basics, the home button is legacy now. Before iPhone X users who wanted to access the app switcher or the Home screen clicked the iPhone’s home button to do that. For iPhone X the same process is available when users swipe up anywhere along the bottom edge along the display. Swipes are the new clicks.

In the attempt to replace the home button with a gesture and make it intuitive, Apple offers information about the interaction in the format of an indicator at the bottom edge along the display; a small line that lives on the bottom of a screen. This indicator is displayed over iPhone X app’s interface. You’ll need to account for this when designing your app.

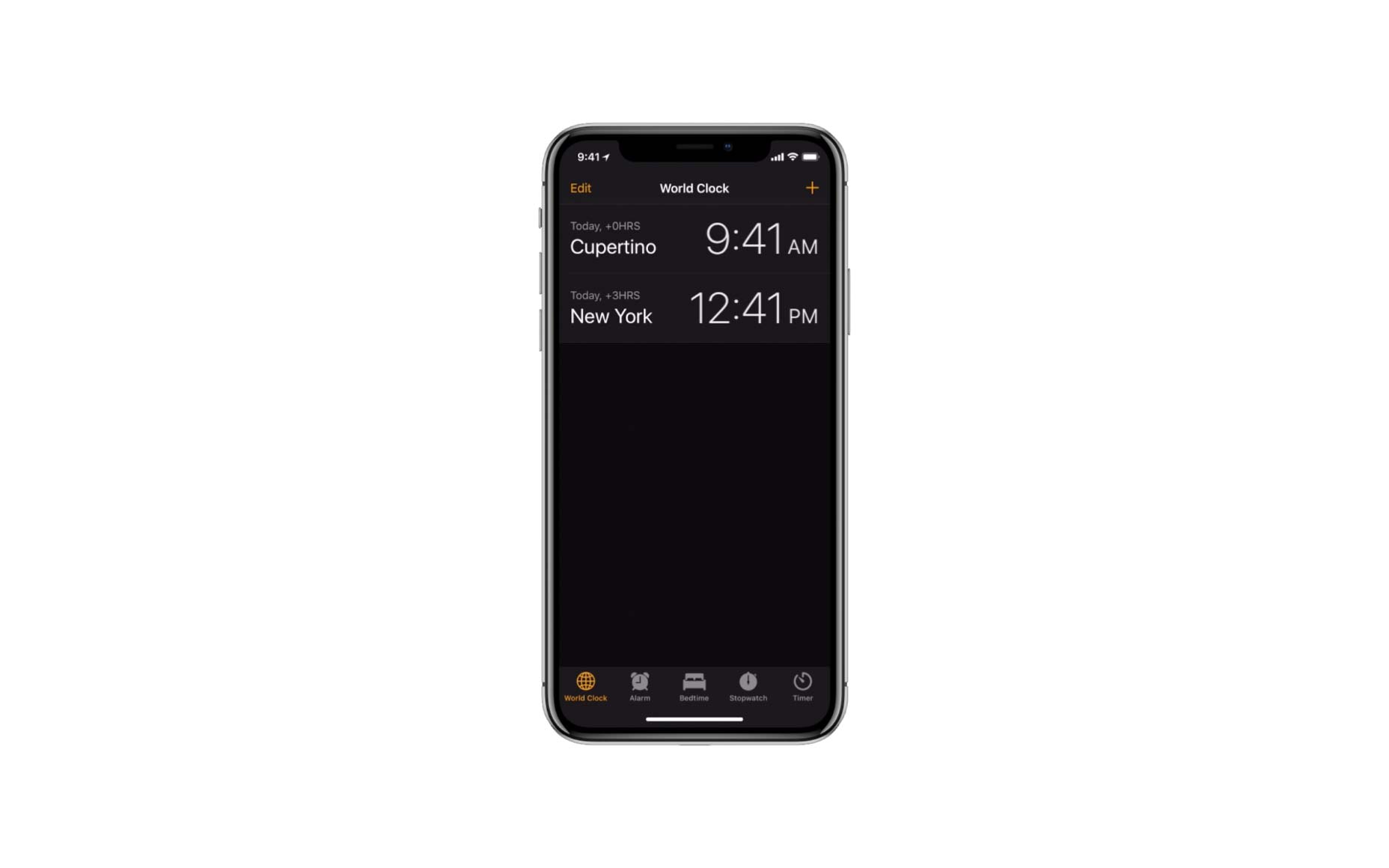

Notice a white line at the bottom, that’s the new home indicator. It notifies you that you can swipe up to go back to your Home screen or into multitasking.

7. Avoid Placing Interactive Elements Near the Home Indicator

It’s best to avoid placing interactive elements such as buttons in close proximity to the indicator or you’ll risk having them overlapped with the Home indicator. Simply leave some whitespace near the home indicator by placing non-scrollable elements within the safe area.

8. Don’t Draw Special Attention To Home Indicator

The home indicator isn’t a decorative element. Don’t mask it, and don’t call special attention to it.

9. Use Auto-Hide For Full-Screen Experiences

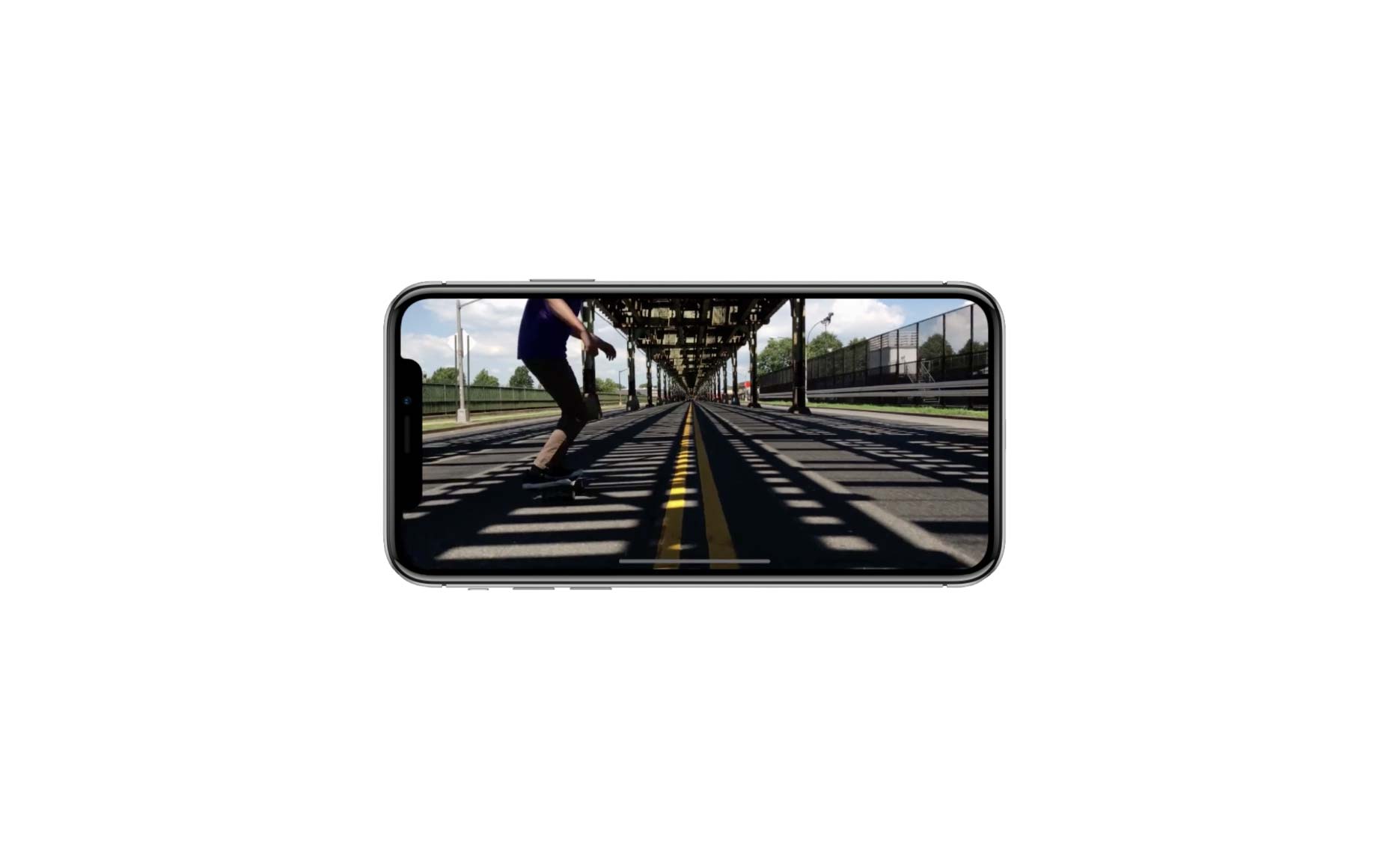

When presenting full-screen visual content such as videos, it’s possible to use auto-hide to hide the Home Indicator.

Notch Area

The notch area is perhaps the most controversial part of the iPhone X design. Some people think it’s visually appealing; others think it’s ugly. But as designers, we can use the screen space available in the notch area for good.

10. Don’t Mask the Notch

Some designers try to make the experience on iPhone X look like similar to the experience on iPhone 8; they place black bars at the top to make it look like an old-school app. It’s better to avoid that – this will only make your app feel inconsistent with other apps on iPhone X. Your app or game should always fill the entire display it runs on.

11. Don’t Hide the Status Bar

If you currently hide the status bar in your app, it’s better to reconsider this decision. Since the status bar area is taller (previously is was 20pt high, now it’s 44pt) and you have more estate to display your content. Add content that is useful for your users.
